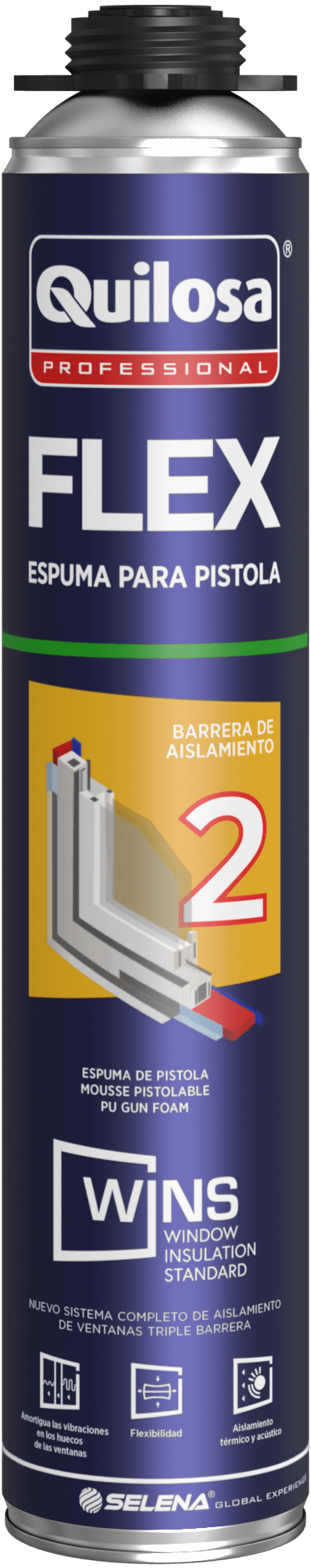

WINS Flex insulating foam is a highly flexible polyurethane foam with low post-expansion and regular structure, which dampens vibrations. It is an excellent solution for joinery insulation in WINS Flex system. The foam is orange. It is a part of the 3-layer WINS Flex window insulation and sealing system (area 2). It is a perfect solution for sealing and insulating the space between the reveal and windows and doors frames, made of wood, metal or PVC. It protects even the largest windows from deformation. In the WINS Flex system it constitutes the filling of the layer n. 2, i.e. the insulation area, and its function in WINS Flex system is primarily insulation.
Advantages
- Foam with low post expansion 40-80% All-season B2 fire resistance Lambda 0
- 035 Acoustics to 62 db Air infiltration coefficient a0
- 1 m3/(m*h*daPa2/3) Air permeability class 4 Waterproofing E1200 No shrinkage Dimensional stability Excellent structure Even expansion Capacity of up to 55 l Reduced cutting time to 40 min Very flexible Regular structure Low-pressure formula (prevents frame deformation) Higher adhesion Compact structure Tytan WINS – Nowy Standard Izolacji i Uszczelnienia Okien
Applications
The product is designed to insulate the joints between the frame and the span, namely barrier 2. The product has an excellent structure and adheres very well to materials such as: aluminium, PVC, wood, silicate blocks, aerated concrete, ceramic blocks, bricks, plaster, etc. It protects joints against freezing and provides excellent thermal and acoustic insulation of the joint. Eliminates linear thermal bridges.
Formats
| Package | Content | Colour | Code | Barcode Ean13 | Units per box |
|---|---|---|---|---|---|
| CAN | 750 ml | orange | 10045924 | 8411729002978 | 12 |
